CEP-10PW-6X0A

■ 规格 Specification

系统 System

处理器 Processor

Intel® 6th Gen. Core ™ i3-6100U processor (2.30GHz)
Intel® Core ™ i5-6200U Processor (2.3GHz, up to 2.8GHz)

内存 Memory

1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB

存储 Storage

1 x M.2 2242 SSD slot, 1 x mSATA

图形 Graphics

InIntel® HD Graphics 520

操作系统 OS

Windows 7/8.1/10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval, from 1~255 sec/min

显示屏 Display

尺寸 Size

10.1 inches

分辨率 Resolution

1024 (H) x 600 (V)

屏幕宽高比 Ratio

16：9

亮度 Brightness

450 nits

可视角 Viewing Angle

80° (R)/80° (L) 80° (B)/75° (T)

对比度 Contrast Ratio

800

背光 Backlight

LED Backlight

背光寿命 Backlight Lifetime

50000Hrs

机构 Mechanical

前框 Front Panel

铝 Aluminum

铝挤 Heat-Sink

铝 Aluminum

底板 Rear Cover

铁 SECC

安装方式 Mounting

Panel Mount, Wall and VESA-mount (75 x 75mm)

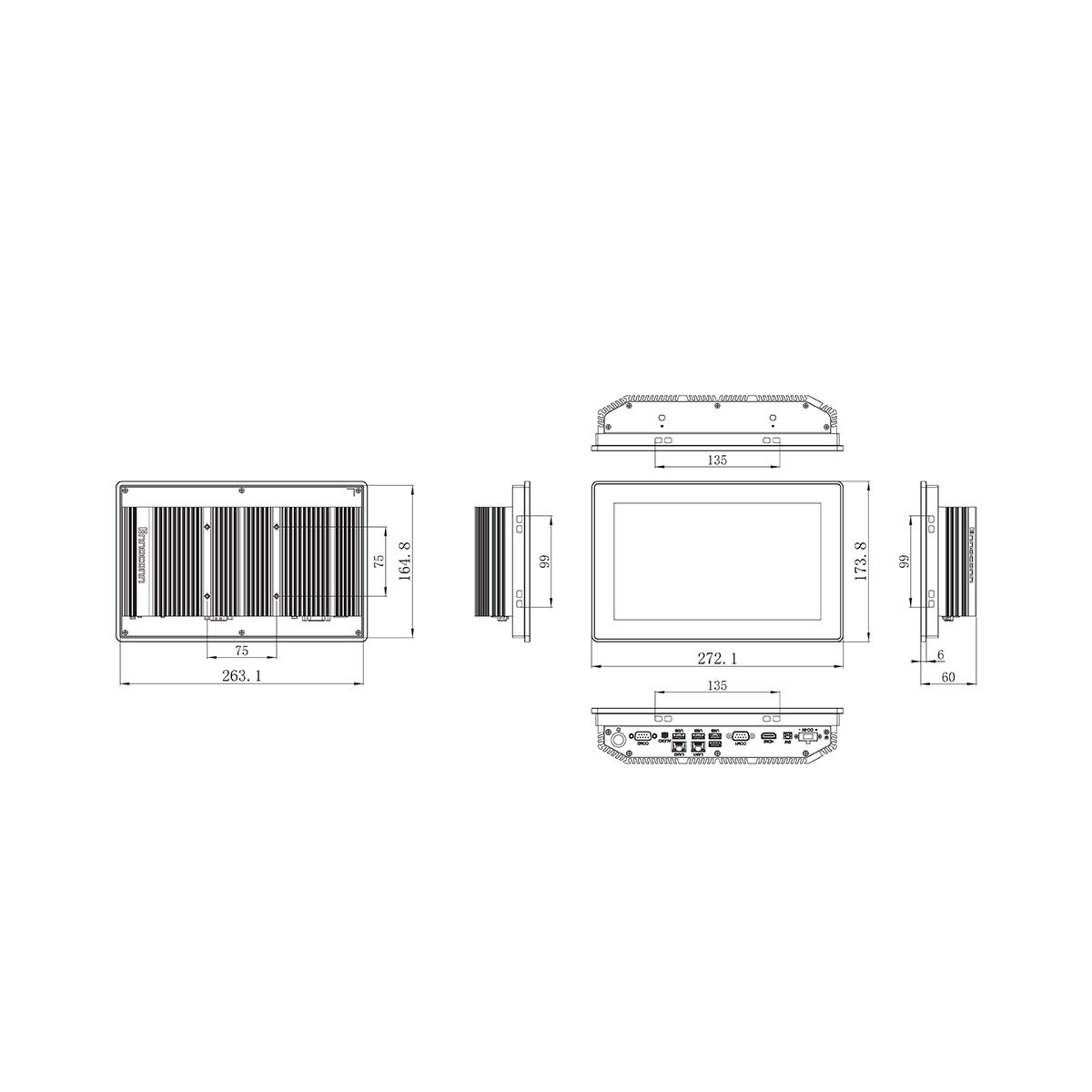

尺寸 Dimension

272.1(W) x 173.8(H) x 60(D)mm

建议开孔尺寸 Cut Out

264.1 x 165.8mm

重量 Weight

2.1kg

电源 Power

电源输入 Power Input

9~36V DC

触摸屏 Touchscreen

触摸屏 Touch Type

10 点投射式电容屏 P-cap Multi-Touch

触击 Touch

35,000,000 times

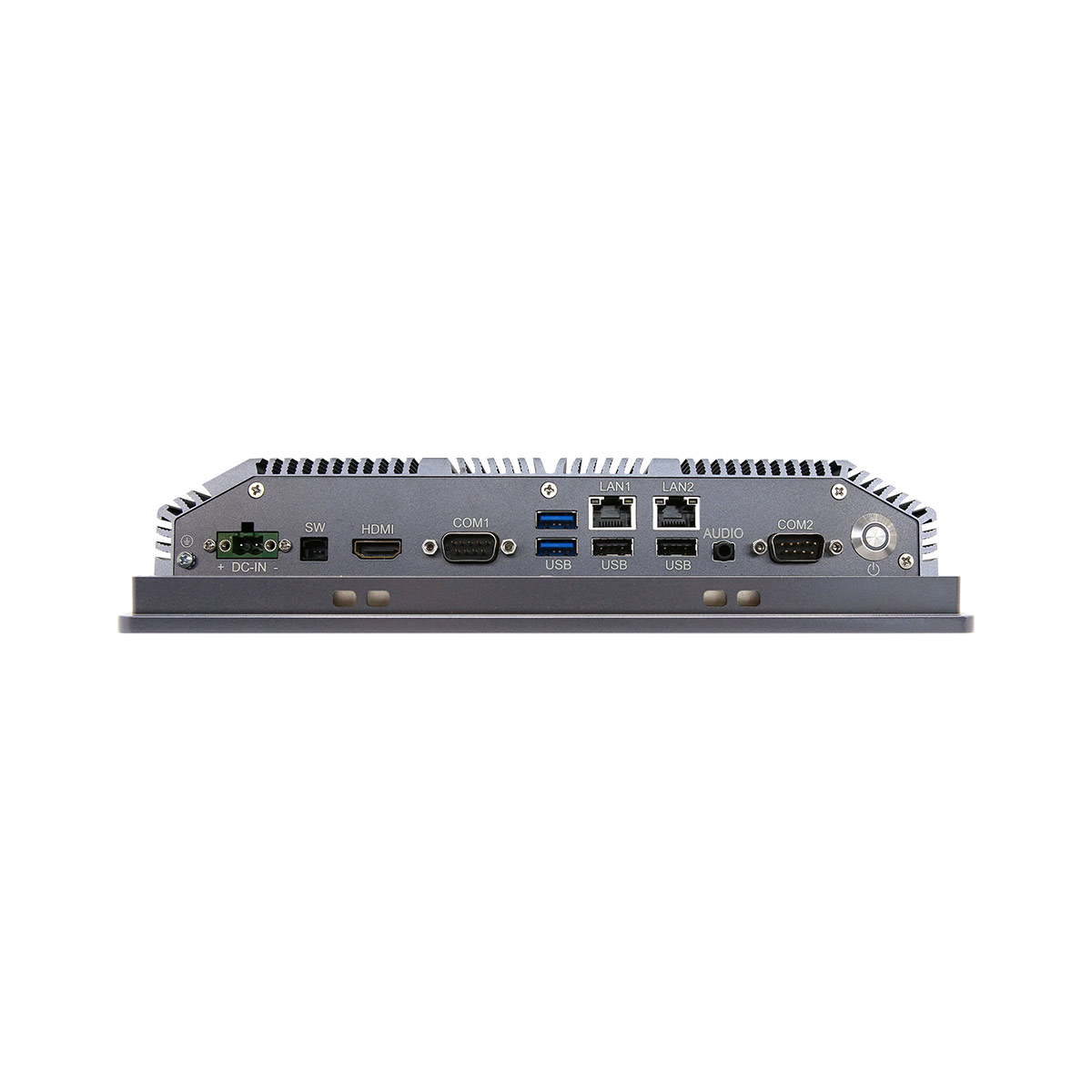

外部接口 External I/O

串口 COM

1 x RS232/RS422/RS485, 1 x RS232

USB

2 x USB3.0, 2 x USB2.0

网口 Ethernet

1 x RJ45 Intel® I211AT (10/100/1000 Mbps)
1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps)

显示 Video

1 x HDMI (up to 4096 x 2160)

音频 Audio

1 x Audio (Line-out&Mic-in 2 in 1), Realtek® ALC269 HD Audio codec

远程开关 Remote ON-OFF

1 x Remote ON-OFF

电源输入 Power Input

1 x Power Connector (2P Phoenix)

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe slot (PCIe/SATA signal supported)
1 x M.2 2242 slot (PCIe/SATA signal supported)
1 x M.2 2230 slot (WiFi supported)
1 x SIM socket

环境 Environmental

操作温度 Operating Temp.

-10℃ ~ 60℃ (SSD)

存储温度 Storage Temp.

-40℃ ~ 70℃

湿度 Relative Humidity

5% ~ 95%, 非凝结状态 Non-condensing

随机振动 Random Vibration

5~500Hz, 2Grms (SSD)operation

正弦振动 Sine Vibration

5~500Hz, 2G Non-operation

机械冲击 Shock

10g 11ms operation, 30g 11ms Non-operation

前面板防护 Ingress Protection

Front panel IP65

认证 Certification

安规认证 Safety Certification

CCC
